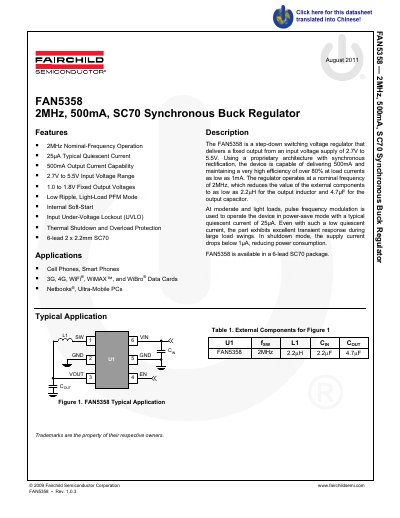

The FAN5358 is a 2MHz, 500mA, SC70 synchronous buck regulator. It operates at a nominal frequency of 2MHz, has a typical quiescent current of 25µA, 500mA output current capability, 2.7V to 5.5V input voltage range, 1.0 to 1.8V fixed output voltages, low ripple, light-load PFM mode, internal soft-start, input under-voltage lockout, thermal shutdown, and overload protection.
The FAN5358 is a step-down switching voltage regulator designed for portable applications such as cell phones, smart phones, and data cards. It operates at a nominal frequency of 2MHz and supports output voltages of 1.0V, 1.2V, 1.3V, and 1.8V. The device features a proprietary synchronous rectification architecture capable of delivering 500mA output current with high efficiency.
| Switching Frequency | 2MHz |
|---|---|
| Output Current | 500mA |
| Input Voltage Range | 2.7V to 5.5V |
| Output Voltages | 1.0V, 1.2V, 1.3V, 1.8V |
| Quiescent Current | 25uA |
| Package Type | 6-lead SC70 |
The typical quiescent current is 25uA.
Available output voltages include 1.0V, 1.2V, 1.3V, and 1.8V.
The operating ambient temperature range is -40°C to +85°C.
