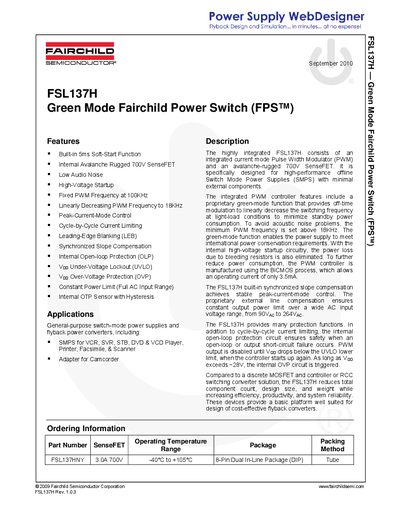

FSL137H is a green mode Fairchild power switch with built-in 5ms soft-start function, internal avalanche rugged 700V SenseFET, low audio noise, high-voltage startup, etc.
The FSL137H is a highly integrated power switch designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. It combines an integrated current mode Pulse Width Modulator (PWM) with an avalanche-rugged 700V SenseFET. The device features a proprietary green-mode function that linearly decreases switching frequency at light loads to minimize standby power consumption and meet international power conservation requirements.
The controller includes various protection functions such as cycle-by-cycle current limiting, internal open-loop protection, over-voltage protection, and over-temperature protection. It operates with a fixed PWM frequency of 100kHz in nominal mode, which decreases to a minimum of 18kHz to avoid acoustic noise. The device is suitable for applications including adapters, VCRs, STBs, and printers.
| Drain Pin Voltage | 700 V |
|---|---|
| Operating Temperature Range | -40°C to +105°C |
| Fixed PWM Frequency | 100 KHz |
| Minimum PWM Frequency | 18 KHz |
| Operating Supply Current | 3.5 mA |
| Package Type | 8-Pin Dual In-Line Package (DIP) |
The maximum practical continuous power in an open-frame design is 25W.
Yes, the device features a built-in soft-start function.
The device supports a constant output power limit over a wide AC input voltage range from 90Vac to 264Vac.
