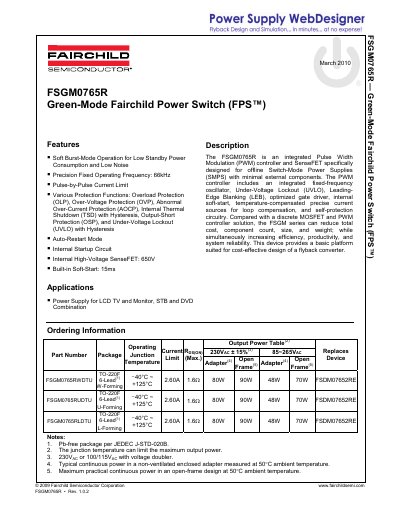

FSGM0765R is a Green-Mode Fairchild Power Switch (FPS™) produced by Fairchild Semiconductor Corporation. It has low standby power consumption, low noise, precise fixed operating frequency, pulse-by-pulse current limit, various protection functions, auto-restart mode, internal startup circuit, internal high-voltage SenseFET and built-in soft-start.
The FSGM0765R is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS). It features soft burst-mode operation for low standby power consumption, a precision fixed operating frequency of 66kHz, and various protection functions including overload, over-voltage, abnormal over-current, thermal shutdown, output short circuit, and under-voltage lockout.
| Switching Frequency (Typ) | 66 kHz |
|---|---|
| Internal High-Voltage SenseFET Voltage | 650 V |
| Built-in Soft-Start Time | 15 ms |
| Maximum Junction Temperature | +150 °C |
| Operating Junction Temperature Range | -40 to +125 °C |
The device provides a basic platform for SMPS with a precision fixed operating frequency of 66kHz.
It is designed for use in power supplies for LCD TV and Monitor, STB (Set Top Box), and DVD Combination.
