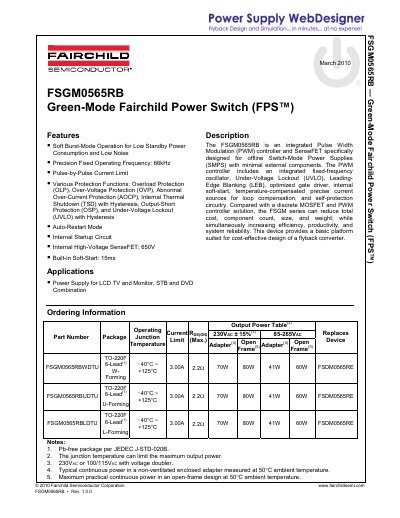

FSGM0565RB is a Green-Mode Fairchild Power Switch (FPS™) with features such as soft burst-mode operation, precision fixed operating frequency, pulse-by-pulse current limit, and various protection functions. It is suitable for applications such as power supply for LCD TVs and monitors, STB and DVD combinations.
The FSGM0565RB is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS). It features soft-burst-mode operation for low standby power consumption and precision fixed operating frequency at 66kHz. The device includes various protection functions such as overload, over-voltage, abnormal over-current, thermal shutdown, and output short-circuit protection.
| Switching Frequency | 66 kHz |
|---|---|
| Internal High-Voltage SenseFET | 650V |
| Built-in Soft-Start Time | 15ms |
| Maximum Junction Temperature | 150 °C |
| Operating Junction Temperature Range | -40 to +125 °C |
The device features a precision fixed operating frequency of 66kHz.
The device includes a built-in soft-start time of 15ms.
