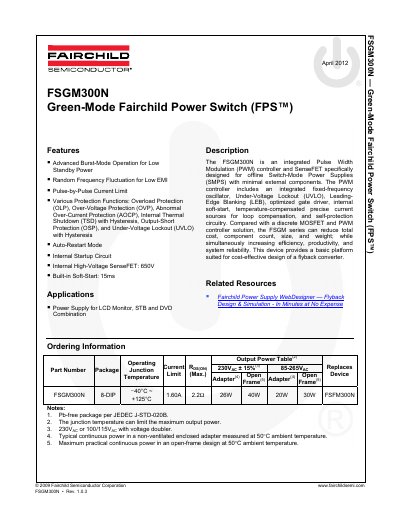

This document introduces the features of FSGM300N green-mode controller, including low standby power, low EMI, pulse-by-pulse current limit, and various protection functions such as overload protection, over-voltage protection, abnormal over-current protection, internal thermal shutdown protection, output-short protection and under-voltage lockout protection.
The FSGM300N is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components. It features advanced burst-mode operation for low standby power, random frequency fluctuation for low EMI, and pulse-by-pulse current limiting. The device includes various protection functions such as Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), and Internal Thermal Shutdown (TSD) with hysteresis.
| Operating Junction Temperature | -40 to +125 °C |
|---|
It is designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components.
Yes, it includes Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), and Internal Thermal Shutdown (TSD).
The maximum junction temperature is 150 °C.
