C1815LT1 is a SOT-23 packaged NPN type transistor from Jiangsu Changjiang Electronics Technology Co., Ltd. Its maximum power dissipation is 0.2W, collector current is 0.15A, collector-base breakdown voltage is 60V, and operating and storage temperature range is -55℃ to +150℃.

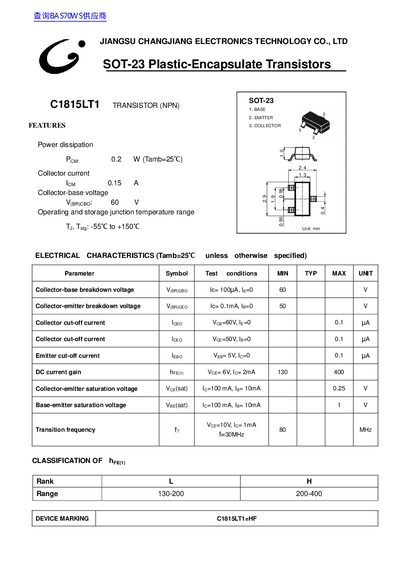

This document is a datasheet for the C1815LT1 NPN transistor manufactured by Jiangsu Changjiang Electronics Technology. It provides key features including power dissipation of 0.2 W, a collector current of 0.15 A, and operating temperatures from -55°C to +150°C.
The datasheet lists specific electrical characteristics such as breakdown voltages for the collector-base and collector-emitter junctions, DC current gain (hFE) ranging from 130 to 400 depending on the rank, and transition frequency up to 80 MHz. It also includes a classification table for device marking based on hFE ranks.
| Power dissipation (P CM) | 0.2 W |
|---|---|
| Collector current (I CM) | 0.15 A |
| Operating and storage junction temperature range | -55℃ to +150℃ |
| DC current gain (hFE) Range L | 130-200 |
The maximum power dissipation is 0.2 W when the ambient temperature is 25 ℃.
The operating and storage junction temperature range is from -55℃ to +150℃.
The maximum collector current rating is 0.15 A.
