This document introduces the WBFBP-06C plastic-encapsulated diode series from Jiangsu Changjiang Electronics Technology Co., Ltd. The products feature ultra-small surface mount packaging and are suitable for transient suppression and portable equipment. Different models of the product have different nominal zener voltages and maximum reverse currents.

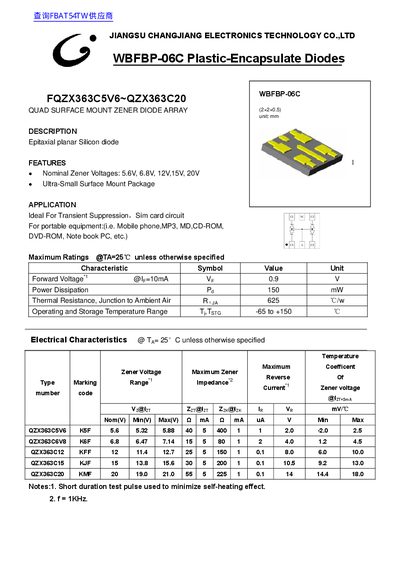

This document is a technical datasheet for the WBFBP-06C Quad Surface Mount Zener Diode Array manufactured by Jiangsu Changjiang Electronics Technology Co., Ltd. The device consists of epitaxial planar silicon diodes with nominal zener voltages available in 5.6V, 6.8V, 12V, 15V, and 20V configurations.
The datasheet provides detailed electrical characteristics, maximum ratings including a power dissipation of 150mW, and typical performance curves such as zener breakdown characteristics and junction capacitance versus voltage. It also includes mechanical package outline dimensions for the ultra-small surface mount package (2x2x0.5mm) and recommended land patterns.
| Nominal Zener Voltages | 5.6V, 6.8V, 12V, 15V, 20V |
|---|---|
| Package Dimensions | 2x2x0.5 mm |
| Power Dissipation | 150 mW |
| Thermal Resistance, Junction to Ambient Air | 625 C/W |
| Operating and Storage Temperature Range | -65 to +150 C |
The maximum power dissipation (Pa) for the WBFBP-06C is 150 mW.
The package dimensions are 2x2x0.5 mm.
The maximum power dissipation is 150 mW.
Available nominal voltages include 5.6V, 6.8V, 12V, 15V, and 20V.
