CJ79L15 is a three-terminal positive voltage regulator with a maximum output current of 100 mA and an output voltage of -15 V.

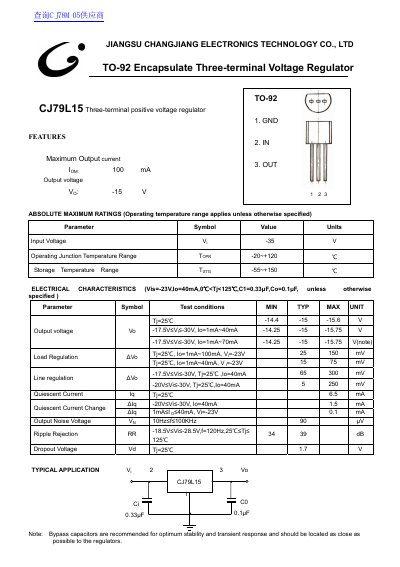

The document describes the CJ79L15, a TO-92 encapsulated three-terminal positive voltage regulator manufactured by JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY. It is designed to provide an output voltage of -15V with a maximum output current of 100mA.
| Output Voltage (Vo) | -15V |
|---|---|
| Maximum Output Current (I OM) | 100 mA |
| Operating Junction Temperature Range (T OPR) | -20~+120 ℃ |
| Input Voltage (Vi) Range | -17.5V to -30V |
| Load Regulation (∆Vo) | 25 mV |
| Line Regulation (∆Vo) | 65 mV |
| Quiescent Current (Iq) | 6.5 mA |
The datasheet recommends a 0.33µF input capacitor (C1) and a 0.1µF output capacitor (Co).
The typical dropout voltage is 1.7V.
