This manual provides detailed information on the package dimensions of various semiconductor devices manufactured by Toshiba Corporation. It also provides charts and lists.

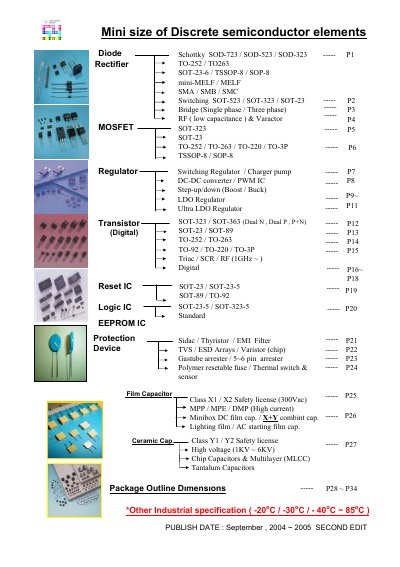

This document provides a comprehensive list of discrete semiconductor elements available in Mini size packages. It covers a wide range of component types, including Schottky diodes, rectifiers, switching diodes, MOSFETs, voltage regulators, transistors, logic ICs, and protection devices such as TVS and fuses. The text also details specific part numbers with their electrical ratings like voltage, current, and resistance.
| Operating Temperature Range | -20°C / -30°C / - 40°C ~ 85°C |
|---|---|
| Package Types | SOT-23, SOT-323, TO-252, TO-263, MELF |
| Component Types | Diode, MOSFET, Regulator, Transistor, IC |
The GT120NWS has a maximum blocking voltage of 20 Volts.
The minimum thickness (dimension A) for an SOT-23 package is 0.37 millimeters.
A TO-263 package has a minimum height (dimension E) of 4.37 millimeters.
