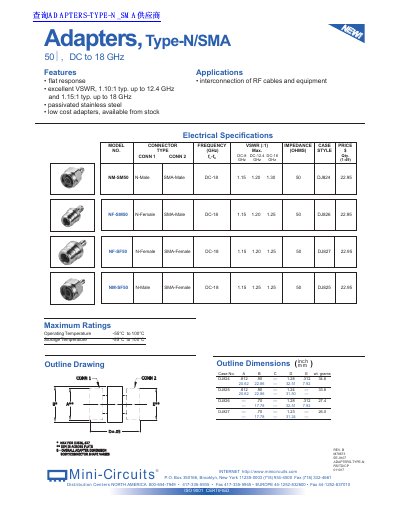

Mini-Circuits ® offers a variety of N/SMA adapters with flat response, excellent VSWR, low cost and reliability. The adapters are made of stainless steel and can operate in the temperature range of -55°C to 100°C.
Mini‑Circuits offers Type‑N to SMA adapters with a flat frequency response and excellent VSWR performance. The adapters are passivated stainless‑steel, low‑cost, and stocked for quick delivery.
These adapters operate from DC to 18 GHz, have a 50 Ω impedance, and function in temperatures from –55 °C to 100 °C. Available configurations include N‑Male to SMA‑Male (NM‑SM50), N‑Female to SMA‑Male (NF‑SM50), N‑Female to SMA‑Female (NF‑SF50), and N‑Male to SMA‑Female (NM‑SF50).
| Frequency Range | DC to 18 GHz |
|---|---|
| Typical VSWR | 1.10:1 up to 12.4 GHz, 1.15:1 up to 18 GHz |
| Impedance | 50 Ω |
| Operating Temperature | -55 °C to 100 °C |
| Storage Temperature | -55 °C to 100 °C |
The adapters have a typical VSWR of 1.10:1 up to 12.4 GHz and 1.15:1 up to 18 GHz.
They operate from –55 °C to 100 °C.
All adapters are 50 Ω impedance.
Available configurations are N‑Male to SMA‑Male (NM‑SM50), N‑Female to SMA‑Male (NF‑SM50), N‑Female to SMA‑Female (NF‑SF50), and N‑Male to SMA‑Female (NM‑SF50).
