This document is the product manual of Fluke 18213B Thermal Imager, which introduces the features and usage of the product.

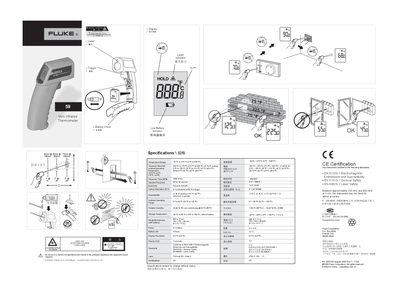

This manual describes the Fluke 3509166 infrared thermometer, covering its temperature measurement range, accuracy, response time, battery life, and physical dimensions. Safety certifications such as CE, EN 61326-1, EN 61010-1 and EN 60825-1 are listed, along with laser safety warnings.
Operational guidance includes display functions, low‑battery indicator, laser indicator, and warranty terms. The document also provides environmental limits, emissivity setting, and storage recommendations. This manual is written in Chinese.
| Temperature Range | -18 °C to 275 °C (0 °F to 525 °F) |
|---|---|
| Accuracy (0 °C‑100 °C) | ±2 °C (±3.5 °F) |
| Accuracy (100 °C‑275 °C) | ±2 % of reading |
| Response Time (95 %) | <500 ms |
| Emissivity Setting | 0.95 |
| Battery | 9 V, 4 hours |
| Weight | 200 g (7 oz.) |
| Dimensions (with battery) | 152 × 102 × 38 mm (6 × 4 × 1.5 in) |
It measures from –18 °C to 275 °C (0 °F to 525 °F).
The built‑in 9 V battery provides about 4 hours of operation.
