87C196CA/87C196CB is a 20MHz 16-bit CMOS microcontroller with CAN 2.0 interface produced by Intel.

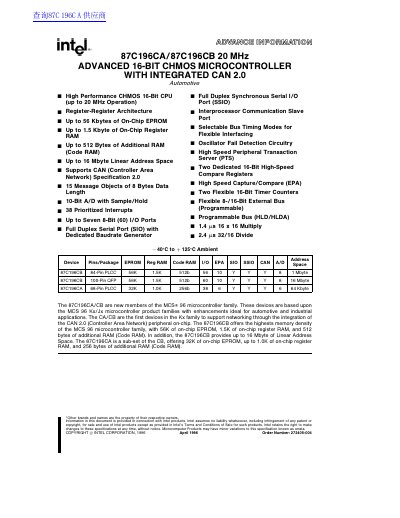

This document is an advance information data sheet for the Intel MCS-96 family members, specifically the 87C196CA and 87C196CB microcontrollers. These devices are designed for automotive and industrial applications with a high-performance 20 MHz CPU and integrated Controller Area Network (CAN) Specification 2.0 support.
| Operating Frequency | up to 20 MHz |
|---|---|
| On-Chip EPROM (87C196CB) | 56 Kbytes |
| On-Chip Register RAM (87C196CB) | up to 1.5 Kbyte |
| Additional RAM (Code RAM) (87C196CB) | up to 512 Bytes |
| Linear Address Space (87C196CB) | Up to 16 Mbyte |
| On-Chip EPROM (87C196CA) | 32K |
| Process Technology | P629.5, a CHMOS III-E process |
The devices support up to 20 MHz operation.
Yes, it supports CAN Specification 2.0 with 15 message objects of 8 bytes data length.
The VPP pin should be connected to a minimum of 12.5V for programming.
