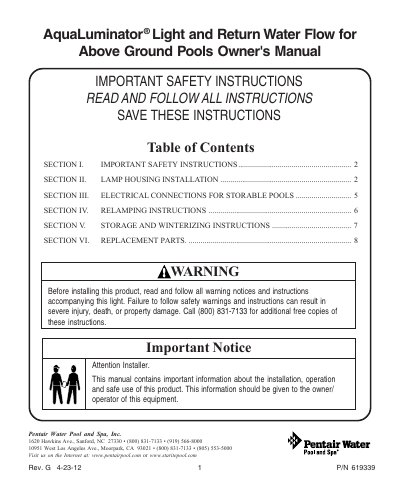

Pentair AquaLuminator Light Return Water Flow for Above Ground Pools Owner's Manual

This manual contains important information about the installation, operation and safe use of AquaLuminator® Light and Return Water Flow for Above Ground Pools

Brand: Pentair
Category: Other
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 241 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 1C7AC80F50344889FDBEF01DF6A12D1A
PDF: Pentair AquaLuminator Light Return Water Flow for Above Ground Pools Owner's Manual PDF

About this manual

This manual covers the installation of the Pentair AquaLuminator light housing on storable or permanent above-ground pools. It details the removal of existing fittings, the installation of the new threaded wall flange, and the assembly of the bulb and flow director components. Important safety precautions regarding electrical grounding and pool wall distances are emphasized throughout the installation steps.

What's inside

Important Safety Instructions
Lamp Housing Installation
Electrical Connections for Storable Pools
Relamping Instructions
Storage and Winterizing Instructions
Replacement Parts

Specifications

Voltage	220V
Wall Distance Requirement	3.0 meters
Lens Depth	20.3 to 25.4 centimeters

Frequently asked questions

Is there polarity for the wire connectors?

No, there is no polarity to the wires, so either connection will work.

Can the light be used as a suction device?

No, the plumbing passageways should only be used to return water to the pool.
