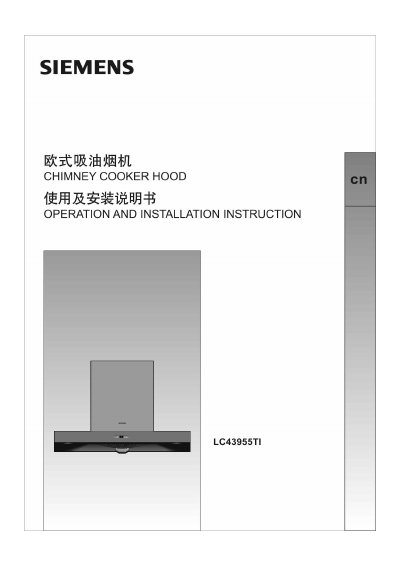

This manual provides step‑by‑step instructions for installing and using the Siemens LC43955TI chimney cooker hood. It covers safety precautions, proper placement, connection of the exhaust duct, and adjustment of fan speed and lighting controls.
The guide also includes cleaning and maintenance procedures, troubleshooting tips, and warranty information to help users keep the hood operating safely and efficiently. This manual is written in Chinese.
| Power Supply | 220V~/50Hz |
|---|---|
| Total Rated Input Power | 220 W |
| Main Motor Rated Power | 180 W |
| Lighting Power | 20 W × 2 |
| Air Flow | 18 m³/min |
| Maximum Static Pressure | 350 Pa |
| Static Pressure at Rated Flow | 285 Pa |
| Noise Level | 69 dB |
| Odor Reduction | 98 % |
| Grease Separation | 90 % |
| Net Weight | 19.7 kg |
| Dimensions (L×W×H) | 895 mm × 530 mm × 568 mm |
| Energy Efficiency Class | Class 1 |
Press the fan switch button “OD”; the blue indicator lights up and the fan starts at the 2‑speed setting.
Press the delay button “Fl” while the hood is running; it works at the default 2‑speed and shuts off automatically after 3 minutes.
Replace it with a special power cord from Siemens service or an authorized dealer, and have the replacement performed by qualified personnel.
