This is an oil pressure machine information manual, including the basic parameters of the product, such as driving air pressure, output pressure, transmission ratio, interface, maximum working temperature, weight, etc.

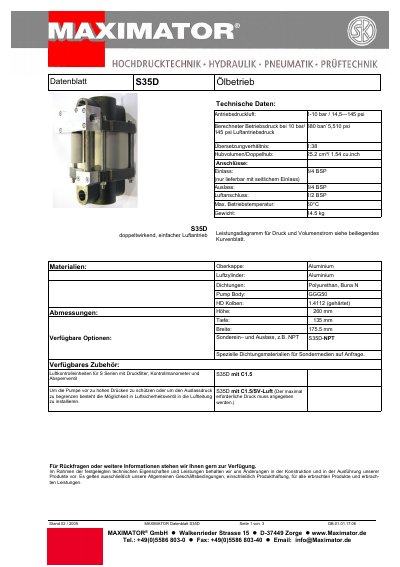

This document is a technical datasheet for the Maximator S35D, a double-acting pneumatic hydraulic pump. It provides key operational parameters such as a drive air pressure range of 1-10 bar and a calculated operating pressure of 380 bar at 10 bar air input. The unit features a translation ratio of 1:38 and is constructed with an aluminum pump body and hardened steel pistons. This manual is written in German.
| Drive air pressure | 1-10 bar |
|---|---|
| Calculated operating pressure | 380 bar |
| Translation ratio | 1:38 |
| Hub volume (double stroke) | 25.2 cm3 |
| Inlet connection | 3/4 BSP |
| Outlet connection | 3/4 BSP |
| Air connection | 1/2 BSP |
| Max. operating temperature | 60°C |
| Weight | 14.5 kg |
| Pump Body Material | GGG50 |
| Piston Material | 1.4112 (hardened) |
| Height | 260 mm |
The maximum operating pressure is 380 bar when driven by 10 bar of air pressure.
Yes, it is available with side inlet/outlet options such as NPT (S35D-NPT).
