MAXIMATOR Kompressor GPLV5 is a compressor suitable for compressing air or other gases. It has the advantages of compressing air and other gases, and does not consume energy when the final pressure is reached. Its technical specifications include an input pressure range of 1 to 60 bar, an output pressure of up to 60 bar, a maximum driving air pressure of 10 bar, a maximum operating temperature of 80°C, and a weight of 14.0 kg.

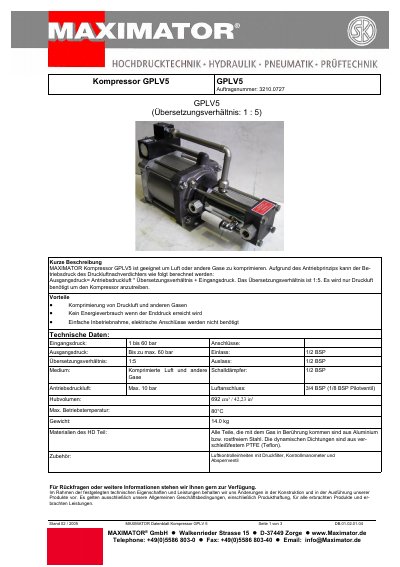

This document is a technical datasheet for the Maximator GPLV5 air compressor, specifically the GPLV5-484 variant. It describes the device's function as a compressor for air and other gases, highlighting its drive principle and operational advantages such as no energy consumption once the final pressure is reached. The document specifies that the unit requires only compressed air for operation and features a pressure ratio of 1:5. This manual is written in German.
| Input Pressure | 1 to 60 bar |
|---|---|
| Output Pressure | Up to max. 60 bar |
| Pressure Ratio | 1:5 |
| Drive Air Pressure | Max. 10 bar |
| Max. Operating Temperature | 80°C |
| Weight | 14.0kg |
The pressure ratio is 1:5.
No, it does not require electrical connections; it is driven by compressed air.
All parts in contact with the gas are made of aluminum or stainless steel.
