This is a product manual for MO37D, which introduces the product's technical parameters, interfaces, materials, dimensions, etc.

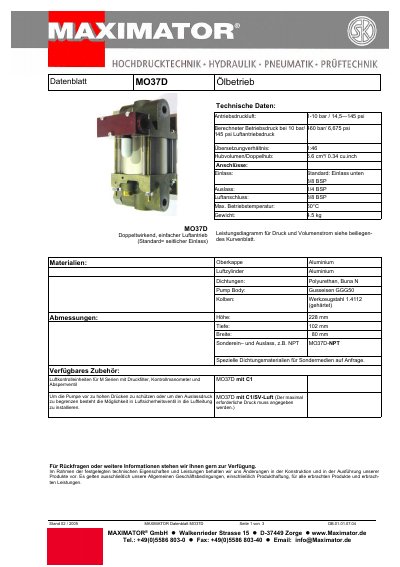

This document is a technical datasheet for the Maximator MO37D, a double-acting pneumatic pump designed for high-pressure applications. The device features an aluminum top cap and pump body made of cast iron, with polyurethan and Buna N seals. This manual is written in German.
| Drive air pressure | 1-10 bar / 14.5-145 psi |
|---|---|
| Calculated operating pressure | 145 psi |
| Gear ratio | 1:46 |
| Hub volume (double stroke) | 6.6 cm³ / 0.34 cu.inch |
| Inlet connection | 3/8 BSP |
| Outlet connection | 1/4 BSP |
| Air connection | 3/8 BSP |
| Max. operating temperature | 60°C |
| Weight | 4.5 kg |
| Height | 228 mm |
| Depth | 102 mm |
| Width | 80 mm |
The seals are made of polyurethan and Buna N.
Yes, a version with special inlet and outlet NPT connections is available as MO37D-NPT.
