This document is a datasheet for the S35 oil-operated pump. It provides technical data and specifications for the product. The pump is designed to be driven by compressed air with a pressure range of 1-10 bar / 14.5-145 psi. It has a high operating pressure and is capable of operating at temperatures up to 60°C. The pump is made of aluminum and features polyurethane and Buna N seals. It offers various options for special inlets and outlets, as well as special sealing materials for specific media. The document also mentions the availability of accessory air control units and the option to install a safety valve to protect against excessive pressure.

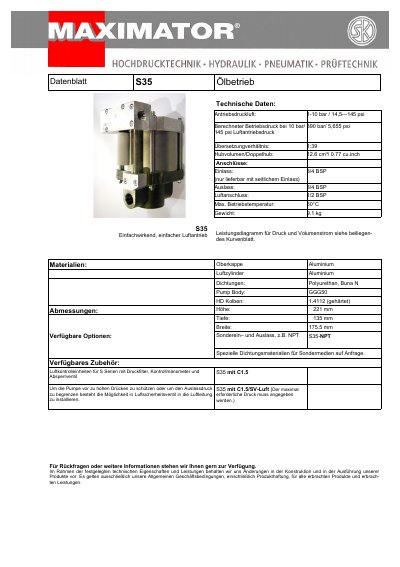

This document is a technical datasheet for the Maximator S35 series of high-pressure pumps. It specifies that the unit operates with an air drive pressure between 1-10 bar (14.5–145 psi) and features a calculated operating pressure of up to 890 bar at this drive level. This manual is written in German.
| Drive air pressure | 1-10 bar / 14.5—145 psi |
|---|---|
| Calculated operating pressure | 890 bar / 12.955 psi |
| Displacement (double stroke) | 12.6 cm³ / 0.77 cu.inch |
| Inlet connection | 3/4 BSP |
| Outlet connection | 3/4 BSP |
| Air connection | 1/2 BSP |
| Max. operating temperature | 60°C |
| Weight | 9.1 kg |
| Pump Body material | GGG50 |
The maximum operating temperature is 60°C.
The maximum operating temperature is 60°C.
The calculated operating pressure is 890 bar.
The volume per double stroke is 12.6 cm³.
