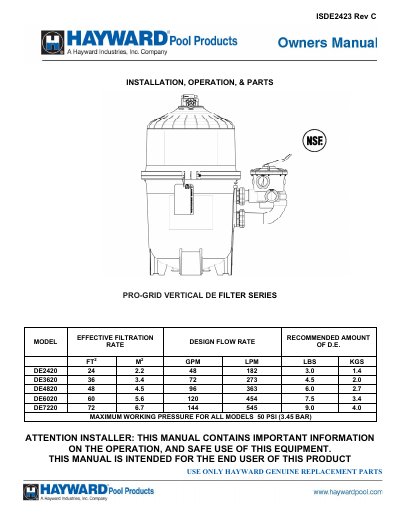

This document provides information on the installation, operation, and parts of the Pro-Grid vertical DE filter series. It includes details about the effective filtration rate, design flow rate, recommended amount of D.E., and maximum working pressure for each model. The document also emphasizes the importance of following safety and operation instructions.
The document provides technical specifications including effective filtration rates, design flow rates, and recommended amounts of D.E. for various Hayward Pro-Grid Vertical D.E. Filter models. It also lists the maximum working pressure for all units as 50 PSI (3.45 BAR).
Detailed installation instructions are provided, covering site selection on a level concrete slab, plumbing connections for suction and return lines, control valve assembly, and safety precautions regarding electrical wiring and component separation hazards.
| Maximum Working Pressure | 50 PSI (3.45 BAR) |
|---|---|
| Effective Filtration Area DE2420 | 24 FT2 / 2.2 M2 |
The maximum working pressure for all models in this series is 50 PSI (3.45 BAR).
Only simple tools such as a screwdriver and wrenches, plus pipe sealant for plastic adapters, are required.
