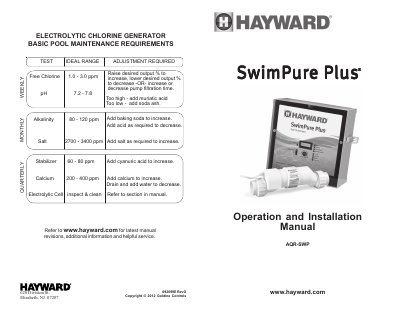

Hayward AQR-SWP SwimPure Plus Chlorine Generator Operation and Installation Manual

About this manual

The document serves as an operation and installation guide for the Hayward AQR-SWP SwimPure Plus electrolytic chlorine generator. It outlines basic pool maintenance requirements necessary for optimal performance, including ideal ranges for free chlorine (1.0-3.0 ppm), pH (7.2-7.8), alkalinity (80-120 ppm), salt levels (2700-3400 ppm), and stabilizer concentrations.

What's inside

• Operation
• Water Chemistry
• Controls
• Maintenance
• Mounting
• Wiring
• Troubleshooting
• Warranty

Frequently asked questions

What is the ideal free chlorine range for this generator?

The desired output should be adjusted to maintain a free chlorine level between 1.0 and 3.0 ppm.

What is the recommended salt concentration for operation?

The system requires a salt level between 2700 and 3400 ppm.

What should be done if the 'Inspect Cell' LED is flashing?

The cell needs to be inspected and cleaned according to the directions in the manual.

What causes the generator to stop generating chlorine in cold water?

The unit stops generating if the water temperature is below 50°F, indicated by a flashing Generating LED.
