This document describes the functions and usage of Swimpure Plus control program.

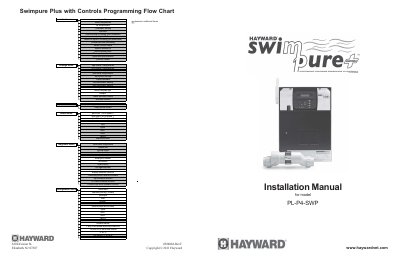

This manual provides installation procedures for the Hayward SwimPure Plus with Controls (Model PL-P4-SWP), an electronic chlorine generator and control unit designed for swimming pools and spas. It covers preparation, mounting, plumbing, electrical wiring, configuration, and system startup.
The document includes safety warnings regarding high voltage and water temperature, warranty information covering defects in materials and workmanship, and detailed steps for connecting the unit to pool heaters, solar systems, and various accessories like remote controls and valve actuators.
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
The grounding terminal must be connected with a continuous copper wire equivalent in size to the circuit conductors supplying the equipment.
You must use an insulated or bare copper conductor not smaller than 8 AWG US or 6 AWG Canada.
