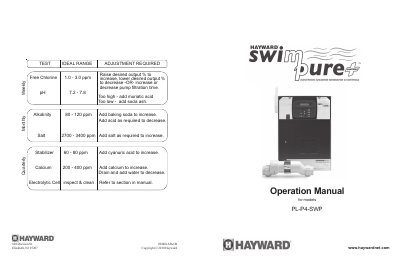

This document is the Automation and Chlorination Operation Manual for models PL-P4-SWP, introducing the functions and features of the product and the usage methods.
This manual provides operating instructions for the Hayward PL-P4-SWP electronic chlorine generator and control system. It details how to operate the system manually or automatically, program timeclocks and timers, and adjust water chemistry settings for free chlorine, pH, alkalinity, salt, and stabilizer levels. The document includes a system overview, block diagram, and instructions for using the programming buttons and menu flow.
| Warranty Period (Residential US/Canada) | three (3) years |
|---|---|
| Warranty Period (Commercial/International) | one (1) year |
| Free Chlorine Ideal Range | 1.0-3.0ppm |
| pH Ideal Range | 7.2-7.8 |
| Alkalinity Ideal Range | 80-120 ppm |
| Salt Ideal Range | 2700 - 3400 ppm |
| Stabilizer Ideal Range | 60 - 80 ppm |
| Calcium Ideal Range | 200 - 400 ppm |
The ideal range for free chlorine is 1.0-3.0ppm.
Add muriatic acid to decrease the pH level.
Add salt as required to increase the level.
Hayward warrants its products for a period of three (3) years for private residential swimming pools in the US.
