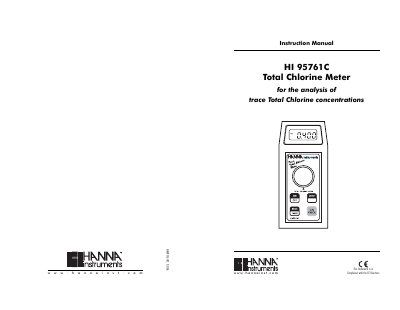

This is a total chlorine meter for the analysis of trace Total Chlorine concentrations.
The HI 95761C is an auto-diagnostic portable microprocessor meter designed for analyzing trace total chlorine concentrations in water samples. It features an advanced optical system with a tungsten lamp and narrow band interference filter, ensuring accurate and repeatable readings. The device includes a CAL CHECK validation function and is splash waterproof for field applications.
| Range | 0.000 to 0.500 mg/L |
|---|---|
| Resolution | 0.001 mg/L |
| Precision | +0.004 mg/L @ 0.200 mg/L |
| Light Source | Tungsten lamp with narrow band interference filter @ 525 nm |
| Light Detector | Silicon Photocell |
| Method | Adaptation of the USEPA METHOD 330.5 |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Auto-Shut off | After 10' of non-use in measurement mode; after 1 hour of non-use in calibration mode |
Hold CAL CHECK for three seconds, then hold ZERO for 10 seconds until 'F.CAL' and '761' appear.
The instrument is warranted for two years against defects in workmanship and materials.
The required reagent is Total Chlorine LR Reagent, supplied as HI 95761-0.
