This is a voltage regulator IC developed using the CMOS process, which has a super low consumption current of 1.5µA (when not loaded) and a high accuracy of ±2% output voltage.

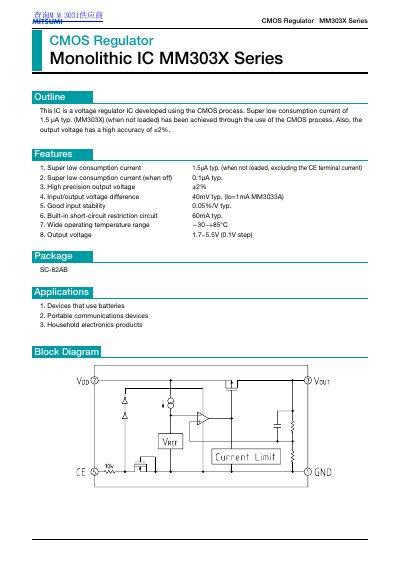

The document describes the MITSUMI CMOS Regulator MM303X Series, a monolithic IC voltage regulator developed using the CMOS process. It features super low consumption current of 1.5 µA typical when not loaded, high accuracy output voltage of ±2%, and a wide operating temperature range from -30°C to +85°C.
| Quiescent Current (Typical) | 1.5 µA |
|---|---|
| Standby Current (Typical) | 0.1 µA |
| Output Voltage Accuracy | ±2% |
| Operating Temperature Range | -30~+85°C |
| Output Voltage Range | 1.7~5.5V |
| Supply Voltage Max | 8 V |
| Output Current Max | 150 mA |
The typical quiescent current when not loaded is 1.5 µA.
The device operates within a range of -30°C to +85°C.
Yes, it requires an external output-capacitor (COUT) because it is not internally compensated.
