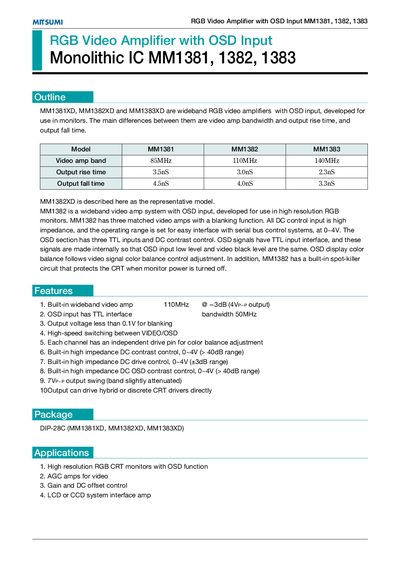

MM1381, 1382, 1383 are three wideband RGB video amplifiers with OSD input, developed for use in monitors. The main differences between them are video amp bandwidth, output rise time, and output fall time.
The MM1381, MM1382 and MM1383 are monolithic IC video amplifiers designed for high‑resolution RGB monitors with on‑screen‑display (OSD) capability. Each device provides a wideband video amp, TTL‑level OSD inputs, and built‑in contrast and drive controls.
Key specifications include video‑amp bandwidth ranging from 85 MHz to 140 MHz, fast output rise/fall times (2.3 ns‑4.5 ns), and a 12 V operating supply. The datasheet lists pin functions, absolute maximum ratings, and recommended external components for optimal performance.
| Video amp bandwidth (MM1381) | 85 MHz |
|---|---|
| Video amp bandwidth (MM1382) | 110 MHz |
| Video amp bandwidth (MM1383) | 140 MHz |
| Output rise time (MM1383) | 2.3 ns |
| Output fall time (MM1383) | 3.3 ns |
| Power supply voltage (Vcc max) | 15.0 V |
| Operating voltage (Vorr) | 11.4 V‑12.6 V |
| Storage temperature range | -55 °C to +150 °C |
| Operating temperature range | -20 °C to +70 °C |
| Video output current | 28 mA |
The MM1383 provides a video‑amp bandwidth of 140 MHz.
The maximum Vcc rating is 15.0 V.
The recommended operating voltage (Vorr) is 11.4 V to 12.6 V.
They can be stored from –55 °C up to +150 °C.
