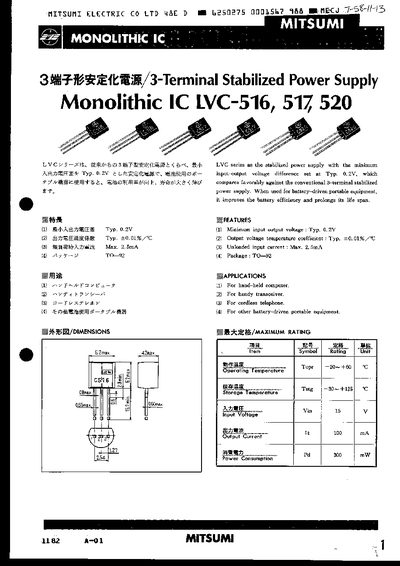

This document describes the LVC-516, LVC-517, and LVC-520 monolithic integrated circuits manufactured by Mitsumi Electric Co Ltd. These devices function as 3-terminal stabilized power supplies designed to improve battery efficiency in portable equipment such as hand-held computers, transceivers, and cordless telephones.
The datasheet provides detailed electrical characteristics for each model, including input voltage ranges (4V to 10V), output current capabilities up to 100mA, and temperature coefficients. It also includes graphical representations of load characteristics and temperature performance.
| Typical Input-Output Voltage Difference | 0.2V |
|---|---|
| Output Voltage Temperature Coefficient | +0.01% / °C |
| Unloaded Input Current (Max) | 2.5mA |
| Package Type | TO-92 |
| Maximum Power Consumption (Pd) | 300 mW |
The typical input-output voltage difference is set at 0.2V.
The typical minimum input-output voltage difference is set at 0.2V.
The maximum power consumption is 300 mW.
