This is a thermometer product produced by Hanna, its characteristics are that it can be used for temperature monitoring in food refrigerator areas. It has two magnets that can be attached to the refrigerator and can be quickly calibrated through the TEST switch on the front of the instrument.

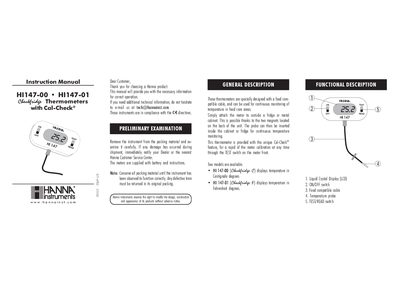

This document is the instruction manual for the Hanna Instruments HI147-00 (Centigrade) and HI147-01 (Fahrenheit) Checkfridge Thermometers. These instruments are designed for continuous temperature monitoring in food care areas using a food-compatible cable and magnets to attach outside fridges or cabinets.
| Range (HI147-00) | -50.0 to 150.0°C |
|---|---|
| Resolution (HI147-00) | 0.1°C |
| Accuracy (HI147-00) | ±0.3°C (-20 to 90°C), ±0.5°C outside |
| Range (HI147-01) | -58.0 to 302°F |
| Resolution (HI147-01) | 0.1°F (-58.0 to 199.9°F), 1°F (200 to 302°F) |
| Battery Type | 1x 1.5V AAA |
| Dimensions | 93 x 39 x 31mm (3.7x1.5x1.2") |
Set the TEST/READ switch in the TEST position; if calibrated, the display will stabilize and show '0.0' for HI147-00 or '32.0' for HI147-01.
Variations in readings or a fading display indicate a low battery level; replace the 1.5V AAA battery.
