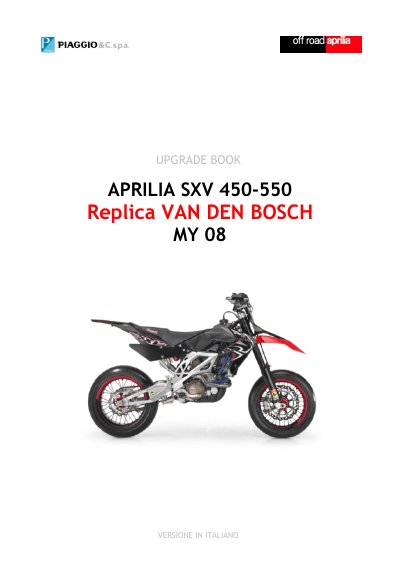

The document provides technical data and instructions for adjusting and configuring various components of the APRILIA SXV 450-550 Replica VAN DEN BOSCH MY 08 VERSIONE IN ITALIANO UPGRADE BOOK 2.
This document serves as a technical service manual for the Aprilia SXV 450-550 Replica Van Den Bosch MY08 motorcycle. It provides detailed specifications for the front fork and rear shock absorber, including standard hydraulic brake adjustments and steering angles. The manual also outlines specific maintenance procedures for the asymmetric chain tensioners and clutch system. This manual is written in Italian.
| Front Fork Type | Marzocchi Shiver 50 |
|---|---|
| Front Fork Travel | 267 mm |
| Rear Shock Type | Mono Sachs racing |
| Rear Shock Travel | 120 mm |
| Standard Primary Spring (450 Wet Race) | 120 kg |
| Standard Secondary Spring (450 Wet Race) | 30 kg |
| Standard Primary Spring (550 Wet Race) | 130 kg |
| Standard Secondary Spring (550 Wet Race) | 30 kg |
| Clutch Wear Limit | 35 mm |
Use the external battery provided with the vehicle by removing the seat, disconnecting the installed battery plug, and connecting it to the external battery.
Act on the adjustment knob on the left handlebar until the desired distance is achieved.
Press the button on the right side of the handlebar to switch between OFF and ON modes.
