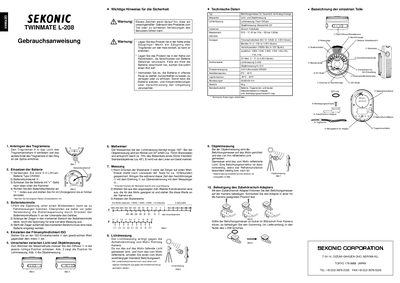

This document is a German user manual (Gebrauchsanweisung) for the Sekonic L-208 TwinMate. It provides step-by-step instructions on assembling the carrying strap, installing the CR2032 lithium battery, and checking battery voltage.
The guide details how to set the film sensitivity ISO scale and switch between light measurement (using a flat diffuser) and object measurement. It explains the difference in measurement angles (180 degrees for light, 93 degrees for objects) and describes how to read shutter speed and aperture values from the analog dials. This manual is written in German.
| Measurement Range (EV) | 3 to 17 |
|---|---|
| ISO Range | 12 to 12500 |
| Aperture Range | f/1.4 to f/32 |
| Shutter Speed Range | 1/8000s to 30s |
| Light Measurement Angle | Approx. 180 degrees |
| Object Measurement Angle | 93 degrees (approx. 73mm focal length) |
| Dimensions | 45x65x24 mm |
| Weight | 40g |
The device requires one 3V lithium cell, specifically Type CR2032.
Press the battery control button on the bottom of the device; if the pointer is outside the marked area, a new battery must be inserted.
