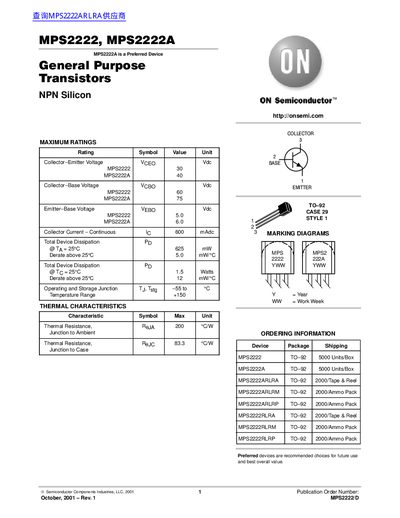

ON Semiconductor MPS2222/MPS2222A General Purpose Transistors Datasheet

The MPS2222A is a preferred NPN Silicon transistor with the maximum ratings of VCEO 40 Vdc, VCBO 75 Vdc, VEBO 6.0 Vdc, IC 600 mAdc, PD 1.5 Watts, TJ, Tstg -55 to +150 °C.

Brand: National Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 122 KB
Published: 11 July, 2012
Updated: 30 September, 2023
Models: MPS2222, MPS2222A
MD5 checksum: F0CBB117A9EAF490D030525DB5591C43
PDF: ON Semiconductor MPS2222/MPS2222A General Purpose Transistors Datasheet PDF

About this manual

This document provides technical specifications for the MPS2222 and MPS2222A NPN silicon general purpose transistors. It details maximum ratings such as collector-emitter voltage (30V/40V) and continuous collector current (600 mA). The datasheet also lists electrical characteristics including DC current gain, switching times, and thermal resistance values.

What's inside

Maximum Ratings
Electrical Characteristics
Small-Signal Characteristics
Switching Characteristics
Package Dimensions

Specifications

Continuous Collector Current	600 mA

Frequently asked questions

What is the package type for MPS2222?

The device is available in a TO-92 package.

What is the maximum continuous collector current for the MPS2222 transistor?

The maximum continuous collector current is 600 mA.
