The S•DIRECT PLUS is a stereo direct INSERTION box from Samson that is perfect for stage, studio and fixed installation. It features 1/4” linked inputs/outputs, 48 volt phantom power or 9 volt operation with auto battery shut off, switch-able ground lift, gold plated XLR balanced outputs and a solid extruded aluminum chassis with large rubber feet.

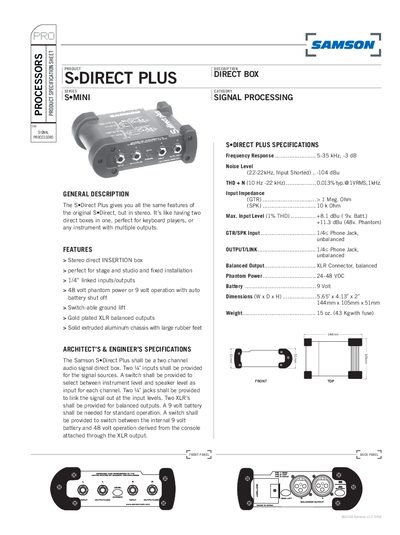

The Samson SeDirect Plus is a two-channel audio signal direct box designed for stage and studio use. It features stereo direct insert capabilities and is suitable for keyboard players or instruments with multiple outputs. The device combines the features of two original SeDirect units into one stereo unit.
| Frequency Response | 5-35 kHz, -3 dB |
|---|---|
| Noise Level | -104 dBu |
| THD + N | 0.013% typ. |
| Input Impedance (GTR) | > 1 Meg. Ohm |
| Input Impedance (SPK) | 10 k Ohm |
| Max. Input Level (1% THD) | +8.1 dBu (9v. Batt.) |
| Max. Input Level (1% THD) | +41.3 dBu (48v. Phantom) |
| Phantom Power | 24-48 VDC |
| Battery | 9 Volt |
| Dimensions | 5.65" x 4.13" x 2" |
| Weight | 15 oz. |
The device has a frequency response ranging from 5 to 35 kHz with a -3 dB attenuation.
The unit measures 5.65 inches by 4.13 inches by 2 inches.
The maximum input level is +8.1 dBu when using a 9-volt battery.
