The document describes two Thermal Conductivity Detectors (TCD) to identify hydrogen, carbon dioxide, nitrogen, methane, carbon monoxide, and light saturated and olefinic compounds up to C5. The analysis time is approximately 40 minutes, depending on hydrocarbon range.

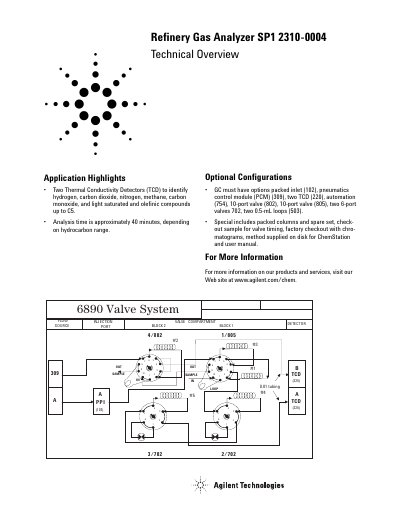

The Agilent SP1 Refinery Gas Analyzer is designed with two Thermal Conductivity Detectors (TCDs) to identify hydrogen, carbon dioxide, nitrogen, methane, carbon monoxide, and light saturated and olefinic compounds up to C5. The analysis time for the instrument is approximately 40 minutes, depending on the hydrocarbon range being analyzed.
The analyzer supports various optional configurations including a packed inlet (102), pneumatics control module (PCM) (309), automation (754), and multiple valve options such as 10-port valves (802, 805) and two 6-port valves (702). Special packages include packed columns, spare sets, factory checkout with chromatograms, and a method supplied on disk for ChemStation.
The analyzer identifies hydrogen, carbon dioxide, nitrogen, methane, carbon monoxide, and light saturated and olefinic compounds up to C5.
The analysis time is approximately 40 minutes, depending on the hydrocarbon range.
