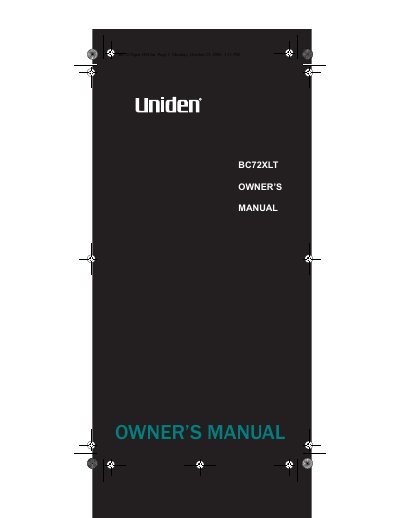

This document is the BC72XLT owner's manual, which provides precautions before use and product features.
The Uniden BC72XLT is a versatile, compact handheld scanner designed to monitor various radio frequencies, including police, fire, NOAA weather, and amateur radio bands. It features Close Call TM RF capture technology to detect strong local signals and allows users to program up to 100 frequencies into its memory. The device is preprogrammed with service banks for convenient access to commonly used frequencies.
| Channels | 100 |
|---|---|
| Banks | 10 (10 channels each) |
| Frequency Range | 25.0-27.995 MHz to 512.0 MHz |
| Scan Rate | 50 channels per second (max) |
| Search Rate Normal | 60 steps per second (max) |
| Search Rate Hyper | 180 steps per second (max) |
| Power Requirements | 2 AA Alkaline Batteries (3V DC), or 2 AA Rechargeable Ni-MH Batteries (2.4V DC), or AC Adapter (6 VDC 500mA) |
| Antenna Impedance | 50 ohms |
| Audio Output | 490 mW maximum |
| Operating Temperature | Normal: –20°C to +60°C |
No, you should use only a monaural earphone or an optional mono headset to avoid potential hearing damage.
No, Uniden does not represent this unit to be waterproof, and exposing it to rain or moisture could cause damage.
You can program up to 100 frequencies into the scanner's memory.
The maximum scan rate is 50 channels per second.
