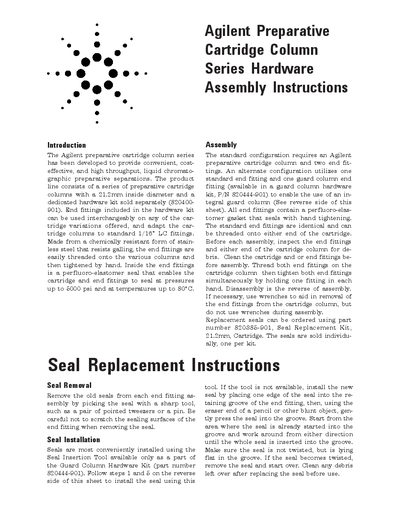

Agilent Technologies Preparative Cartridge Column Series Hardware Assembly Instructions

About this manual

This document provides assembly instructions for the Agilent Preparative Cartridge Column Series, which features a 21.2mm inside diameter. The series includes standard end fittings made of chemically resistant stainless steel that seal at pressures up to 5000 psi and temperatures up to 80°C using perfluoro-elastomer seals.

The manual details the assembly process for both standard configurations (using two identical end fittings) and alternate configurations utilizing a guard column. It also includes specific instructions for removing and installing replacement seals, noting that seal installation is most conveniently performed with a Seal Insertion Tool available in the Guard Column Hardware Kit.

What's inside

• Introduction
• Assembly
• Seal Replacement Instructions
• Seal Removal
• Seal Installation
• Integral Prep Guard Column Installation Guide
• Ordering Information

Specifications

Frequently asked questions

Can end fittings be used interchangeably on different cartridge variations?

Yes, the end fittings included in the hardware kit can be used interchangeably on any of the cartridge variations offered.

What is the part number for the Seal Replacement Kit?

The part number for the Seal Replacement Kit is 820385-901.
