LP379PBL1-C0G is a P4 InGaN blue ultra bright LED produced by Marktek Opto. It is used in applications such as advertising signs, indicators, and e-paper. Its rated working current is 30 mA, its rated working voltage is 5 V, and its maximum power dissipation is 120.00 mW.

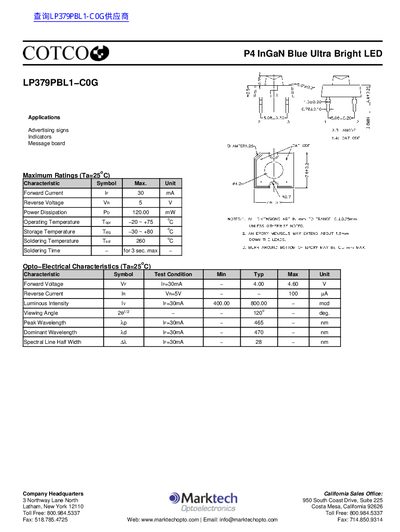

This document is a datasheet for the Marktech LP379PBL1-C0G, an InGaN blue ultra bright LED designed for applications such as advertising signs, indicators, and message boards. The device features a peak wavelength of approximately 465nm and a viewing angle of 120 degrees.
The datasheet provides maximum ratings including forward current up to 30mA and reverse voltage up to 5V. It also lists opto-electrical characteristics such as luminous intensity ranging from 400 to 800 mcd, along with graphs illustrating the relationship between forward current/voltage and relative luminous flux.
| Product Type | P4 InGaN Blue Ultra Bright LED |
|---|---|
| Peak Wavelength | 465 nm |
| Dominant Wavelength | 470 nm |
| Viewing Angle | 120° |
| Forward Current (Max) | 30 mA |
| Reverse Voltage (Max) | 5 V |
| Luminous Intensity Range | 400.00 - 800.00 mcd |
The leads should not be exposed to soldering temperatures for more than 3 seconds.
The maximum reverse voltage rating is 5 V.
