The P4 InGaAlP Blue Ultra Bright LED LP377RBL1-70G features a low profile 4 pin plastic package, water clear lens, high flux output, and high current operation. It is suitable for automotive interior and exterior lighting, rail signals, traffic control devices, channel letters, strip lighting, and architectural lighting.

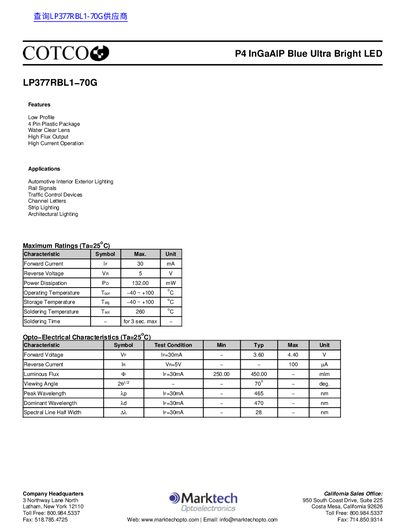

This document is a datasheet for the Marktech LP377RBL1-70G, a P4 InGaAlP Blue Ultra Bright LED. The component is designed with a low profile and a water clear lens, housed in a 4-pin plastic package. It is optimized for high flux output and high current operation.
| Forward Current | 30 mA |
|---|---|
| Reverse Voltage | 5 V |
| Power Dissipation | 132.00 mW |
| Operating Temperature | -40 ~ +100 °C |
| Luminous Flux | 250.00 - 450.00 mIm |
| Viewing Angle | 70° |
| Peak Wavelength | 465 nm |
| Dominant Wavelength | 470 nm |
Applications include automotive interior/exterior lighting, rail signals, traffic control devices, channel letters, strip lighting, and architectural lighting.
The maximum forward current is 30 mA.
The operating temperature range is from -40 to +100 °C.
