LP377NBL1-70G is a high-brightness LED from Marktech with low power consumption and high brightness. It is used in automotive, traffic signals and architectural lighting.

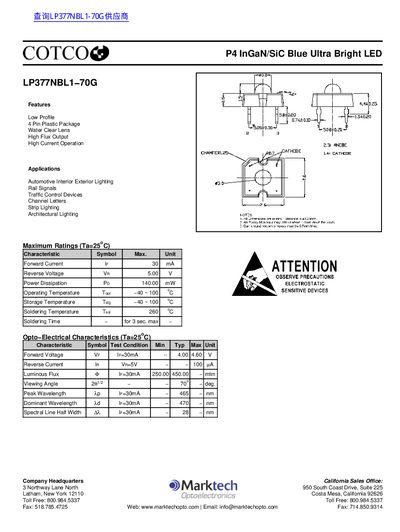

This document is a datasheet for the Marktech LP377NBL1-70G, a P4 InGaN/SiC Blue Ultra Bright LED. The component features a low profile design with a water clear lens and is available in a 4-pin plastic package. It is designed for high current operation with high flux output, suitable for applications such as automotive interior and exterior lighting, rail signals, traffic control devices, and architectural lighting.
| Forward Current | 30 mA |
|---|---|
| Reverse Voltage | 5.00 V |
| Power Dissipation | 140.00 mW |
| Operating Temperature | -40~ 100} °C |
| Luminous Flux | 250.00 - 450.00 mIm |
| Viewing Angle | 70° |
| Peak Wavelength | 465 nm |
| Dominant Wavelength | 470 nm |
This LED is suitable for automotive interior and exterior lighting, rail signals, traffic control devices, channel letters, strip lighting, and architectural lighting.
The maximum forward current rating is 30 mA.
The operating temperature range is from -40°C to 100°C.
