LP379PBG1−C0G is a P4 InGaN Green Ultra Bright LED. Its maximum ratings are: forward current of 30 mA, reverse voltage of 5 V, power dissipation of 120.00 mW, operating temperature of -20~+75℃, storage temperature of -30~+80℃, soldering temperature of 260℃, and soldering time of 3 seconds. Its optical characteristics include a forward voltage of 4.00~4.60 V, a reverse current of 100µA, an emission intensity of 1000.00~2000.00 mcd, a viewing angle of 120°, a peak wavelength of 502 nm, a dominant wavelength of 505 nm, and a spectral line half-width of 38 nm.

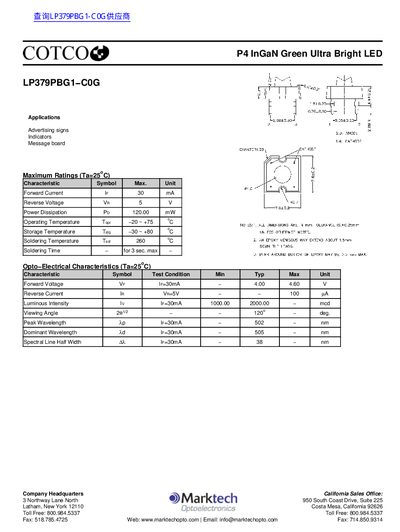

This document is a datasheet for the Marktech LP379PBG1-C0G, a P4 InGaN Green Ultra Bright LED. It provides maximum ratings, operating conditions, and opto-electrical characteristics for the component.
| Reverse Voltage | 5 V |
|---|---|
| Power Dissipation | 120.00 mw |
| Operating Temperature | -20 ~ +75 cC |
| Storage Temperature | -30 ~ +80 °c |
| Soldering Temperature | 260 °C |
| Forward Voltage | 4.00 4.60 Vv |
| Reverse Current | 100 HA |
| Luminous Intensity | 1000.00 2000.00 - med |
| Viewing Angle | 120° - deg. |
| Peak Wavelength | 502 - nam |
| Dominant Wavelength | 505 - nam |
The LED is suitable for advertising signs, indicators, and message boards.
The viewing angle is 120 degrees.
