The P4 AlGaInP Red Ultra Bright LED LP377THR1-A0G features a low profile, 4-pin plastic package, water clear lens, high flux output, and high current operation. It is suitable for applications such as automotive interior/exterior lighting, rail signals, traffic control devices, channel letters, strip lighting, and architectural lighting.

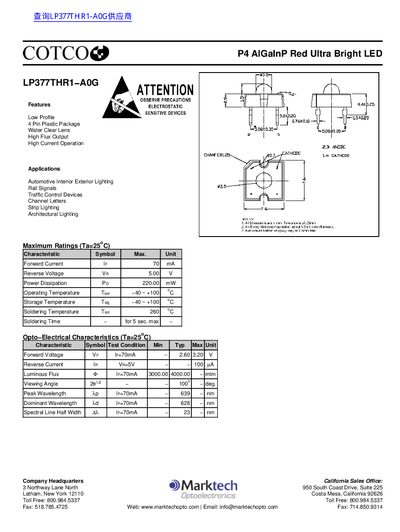

The document describes the Marktech LP377THR1-A0G, a P4 AlGaInP Red Ultra Bright LED available in a low-profile 4-pin plastic package with a water-clear lens. It is designed for high flux output and high current operation.
Key applications include automotive interior and exterior lighting, rail signals, traffic control devices, channel letters, strip lighting, and architectural lighting.
| Forward Current (IF) | 70 mA |
|---|---|
| Reverse Voltage (VR) | 5.00 V |
| Power Dissipation (Pp) | 220.00 mW |
| Operating Temperature (Topr) | -40~+100 °C |
| Luminous Flux | 3000.00-4000.00 mIm |
| Peak Wavelength (Ap) | 639 nm |
The maximum forward current rating is 70 mA.
The maximum reverse voltage is 5.00 V.
