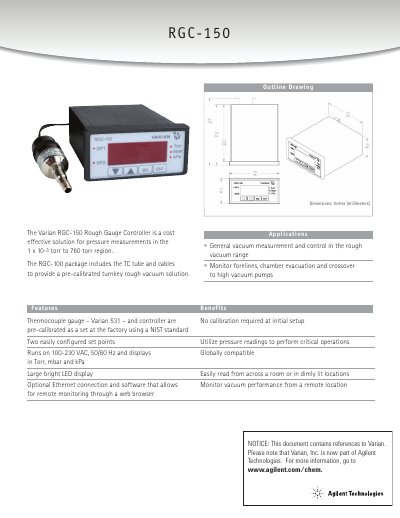

RGC-150 Rough Gauge Controller is a cost effective solution for pressure measurements in the 1 x 10-3 torr to 760 torr region. The RGC-100 package includes the TC tube and cables to provide a pre-calibrated turnkey rough vacuum solution. RGC-150 Thermocouple gauge – Varian 531 – and controller are No calibration required at initial setup pre-calibrated as a set at the factory using a NIST standard. Two easily configured set points Utilize pressure readings to perform critical operations. Runs on 100-230 VAC, 50/60 Hz and displays Globally compatible in Torr, mbar and kPa. Large bright LED display Easily read from across a room or in dimly lit locations. Optional Ethernet connection and software that allows Monitor vacuum performance from a remote location for remote monitoring through a web browser. • General vacuum measurement and control in the rough vacuum range. • Monitor forelines, chamber evacuation and crossover to high vacuum pumps.
The Agilent RGC-150 Rough Gauge Controller is designed as an economical solution for measuring pressure within the rough vacuum range of 1 x 10^-3 torr to 760 torr. It features a pre-calibrated thermocouple gauge and controller that require no calibration at initial setup, utilizing a NIST standard during factory assembly.
| Measurement Range | 1 x 10^-3 to 760 Torr (1.3 x 10^-3 to 1013 mbar) |
|---|---|
| Accuracy | ±10% of reading (varies by pressure range) |
| Display Type | 6 digit red LED |
| Supply Voltage | 100-240VAC, 50/60 Hz |
| Vacuum Fitting | 1⁄8 inch NPT-M |
No, it is pre-calibrated as a set at the factory using a NIST standard and requires no calibration at initial setup.
The device measures pressure in the rough vacuum region from 1 x 10^-3 torr to 760 torr.
