This file introduces the various high-fidelity, specialty, and routine enzymes provided by Agilent to meet virtually every amplification need.

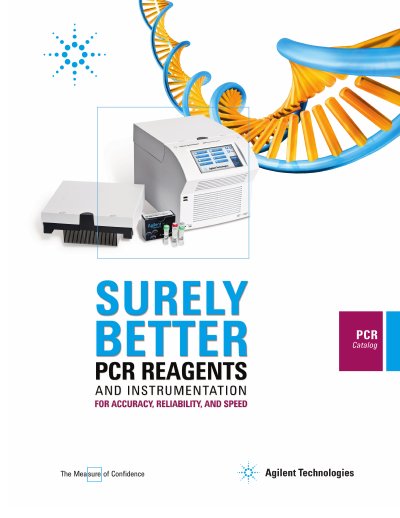

This document is a product catalog for the Agilent SureCycler 8800 PCR thermal cycler, highlighting its capabilities in speed, volume, and gradient functionality. It emphasizes the instrument's ability to offer both high speed and high volume capabilities simultaneously, unlike competitor instruments that often force a choice between the two.
| Maximum Block Ramp Rate (96-well) | 6° C/sec |
|---|---|
| Block Temperature Range | 4-99° C |
| Temperature Accuracy | +0.2° C (@95° C) |
| Temperature Uniformity | +0.4° C (@95° C) |
| Gradient Temperature Range | 30-90° C |
| Maximum Gradient | 30°C |
| Volume Capacity (96-well) | 10-100 pL |
| Memory Capacity | 10,000 protocols |
| Display Size | 7in |
| Display Resolution | 800 x 480 |
| Ports | 2 x USB 2.0 |
| Dimensions | 41 Lx 28W x 27 (38 open) H cm |
| Weight | 12.4 kg |
| Standard Warranty | 2 years |
The maximum block ramp rate for the 96-well configuration is 6° C/sec.
Yes, the system allows for 96 and 384 well blocks on the same system.
The temperature accuracy is +0.2° C at 95° C.
