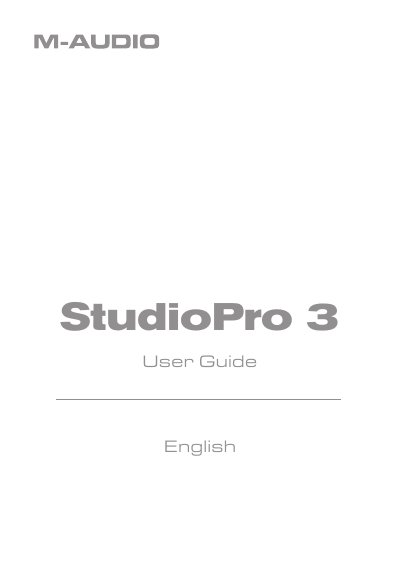

StudioPro 3 professional desktop multimedia audio monitors user guide, introduces the features and characteristics of StudioPro 3 monitors
The M-Audio StudioPro 3 is a professional desktop multimedia audio monitor designed to deliver high-quality sound for recording engineers and producers. The system includes two self-powered speakers featuring a 3.25-inch woofer and a 1-inch dome tweeter, enclosed in a magnetically shielded cabinet to prevent interference with computer monitors. It offers a stereo auxiliary input, a headphone output, and a bass-boost control for versatile listening in various environments.
| Woofer Diameter | 3.25" |
|---|---|
| Tweeter Diameter | 1" |
| Frequency Response | 100 Hz - 20 kHz ±3 dB |
| Crossover Frequency | 2.3 kHz |
| RMS SPL | 101.5dB @ 1 meter |
| Dynamic Range | > 80 dB |
| S/N Ratio | >90dB |
| Dynamic Power | 10 watts RMS into 4 Ω per channel |
| Input Connectors | left and right RCA Line input connectors |
| Input Impedance | 10 k Ω unbalanced |
| Input Sensitivity | 100 mV pink noise input produces 90 dBA output SPL |
| Power Requirements | 100-120V/~60Hz, 220~240V/~50Hz |
| Dimensions | 7.9" (H) x 5.5" (W) x 5.9" (D) |
| Weight | 8.8 lbs./pair |
The frequency response is 100 Hz to 20 kHz with a tolerance of ±3 dB.
It delivers 10 watts RMS into 4 ohms per channel at 0.5% THD.
It operates on 100-120V at 60Hz or 220-240V at 50Hz.
The two speakers and the listener should align to form an equilateral triangle.
