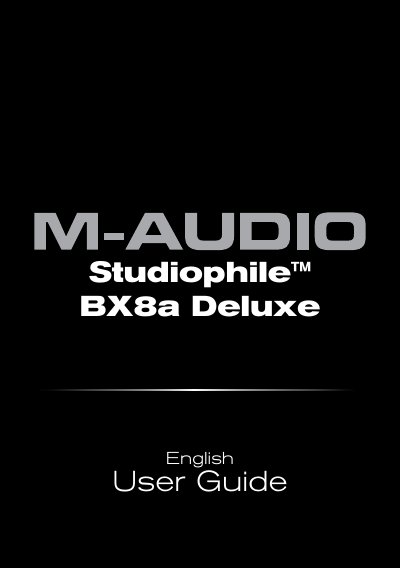

Studiophile BX8a Deluxe User Guide introduces the features and characteristics of the Studiophile BX8a Deluxe bi-amplified studio near-field monitor speakers and their usage
This manual provides instructions for the M-Audio Studiophile BX8a Deluxe, a bi-amplified studio near-field monitor speaker. It details the features of the 8-inch Kevlar woofer and 1-1/4 inch silk dome tweeter, as well as the active crossover and power amplifier system designed for pure sound reproduction.
| LF Driver | 8-inch Kevlar curved cone |
|---|---|
| HF Driver | 1-1/4 inch magnetically shielded natural silk dome |
| Frequency Response | 40Hz - 22kHz |
| Crossover Frequency | 2.2kHz |
| LF Amplifier Power | 70W |
| HF Amplifier Power | 60W |
| Maximum S/N | > 100dB typical A-weighted |
| Input Connectors | 1 x XLR balanced, 1 x TRS balanced/unbalanced |
| Input Impedance | 20k ohms balanced, 10k ohms unbalanced |
| Input Sensitivity | 85mV pink noise input produces 90dBA output SPL at one meter with volume control at maximum |
| Power Requirements | 115V ~50/60Hz, 230V~50/60Hz |
| Dimension | 12" (H) x 10" (W) x 15" (D) |
| Weight | 26.4 lbs. unit 11.97 kg |
The crossover frequency is 2.2kHz.
The woofer driver receives 70W and the tweeter receives 60W.
The unit is factory programmed for either 115V AC or 230V AC.
