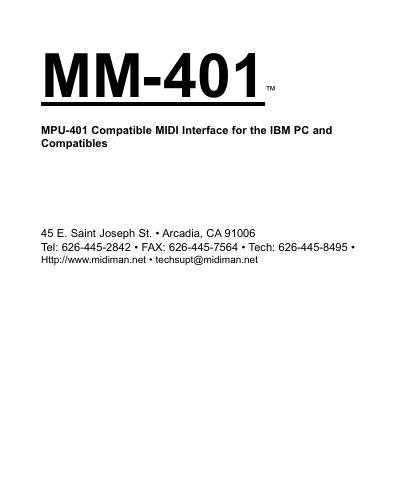

MIDIMAN MM-401 MIDI Interface User Guide

MM-401™ MPU-401 Compatible MIDI Interface for the IBM PC and Compatibles. Features include 1/3 card length, one MIDI In and one MIDI Out jack, switch selectable address and interrupt/IRQ locations, external click metronome output, compatible with any PC at any speed including PC/AT/386/486, can be reset via a computer hardware reset, accepts MIDI signals.

Brand: Evolution
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 68 KB
Published: 04 July, 2012
Updated: 28 September, 2023
MD5 checksum: 1175B69FBD8C759E39BFE6427B0BF50D
PDF: MIDIMAN MM-401 MIDI Interface User Guide PDF

About this manual

The MIDIMAN MM-401 is a MIDI interface card designed for IBM PC and compatible systems. It features one MIDI In and one MIDI Out jack, supports 1/3 card length installation in 8 or 16-bit ISA slots, and includes an external click metronome output. The device runs on various PC platforms including PC/AT, 386, and 486 models.

What's inside

FCC Compliance
Package Contents
Features
Drivers
Interrupt/IRQ and Address Selection
Mechanical Installation
Windows Installation
Troubleshooting

Specifications

Card Length	1/3 card length
MIDI Ports	One MIDI In and one MIDI Out jack
Compatible Platforms	PC/AT/386/486

Frequently asked questions

What is the default address and interrupt setting for the MM-401?

The default settings are address 330 and interrupt/IRQ 2.

What driver is recommended for Windows?

Windows uses the Roland MPU-401 driver provided on Microsoft Windows diskettes.

How do I resolve a 'MIDI Data Error'?

Check your MIDI cables and connections to ensure they are plugged in all the way.
