The Evolution MK-149 is a versatile MIDI keyboard with multiple control buttons and adjustment features. It can be powered by batteries or an AC adapter. Users can connect it to other MIDI devices such as sound modules and computers for music composition and performance. The keyboard has 16 MIDI transmit channels that can be set as needed.

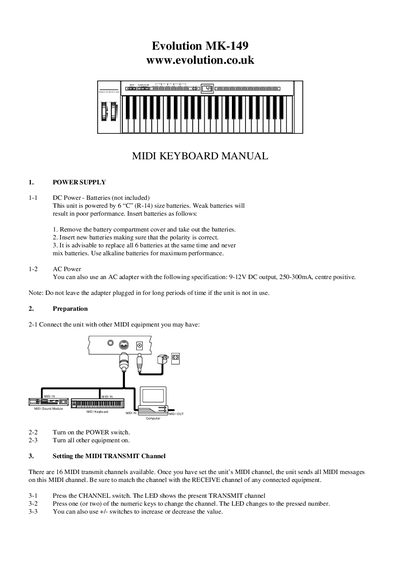

This manual provides instructions for the Evolution MK-149 MIDI keyboard, a 49-key velocity-sensitive controller. It covers power supply options (6 'C' batteries or a 9-12V DC adapter), initial setup, and connecting to other MIDI equipment. The guide details how to configure MIDI transmit channels, program changes, and bank select messages using the numeric keys and switches.
| Keyboard | 49 standard keys (Velocity sensitive) |
|---|---|
| Power (Batteries) | 6 'C' (R-14) size batteries |
| Power (AC Adapter) | 9-12V DC output, 250-300mA |
| Dimensions | 805 x 205 x 84 (mm) |
| Weight | 3.2 kg |
The default CHANNEL is 1 when power is turned on.
Pressing the '+' and '-' switches simultaneously resets the pitch to the default value.
Yes, the unit is powered by 6 'C' (R-14) size batteries.
