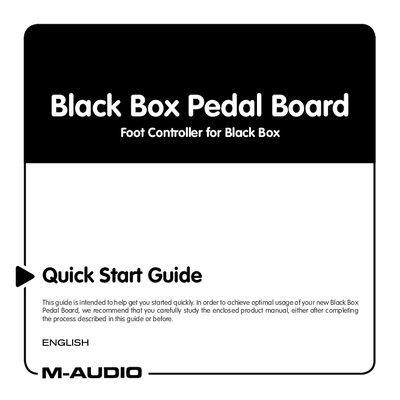

M-Audio Black Box Pedal Board Quick Start Guide

About this manual

This guide provides initial setup instructions for the M-Audio Black Box Pedal Board, explaining how to connect the included expression pedal and two momentary switches to the unit's back panel jacks. It distinguishes between the continuous range of an expression pedal and the on/off nature of momentary switches.

What's inside

• Making the Connections
• Assignable Expression Pedal Values
• FX Speed
• FX Frequency
• FX Depth
• FX Key
• FX Wet/Dry
• Delay Volume
• Delay Repeats
• Momentary Pedal Assignments

Frequently asked questions

What is the difference between an expression pedal and a momentary pedal?

An expression pedal has a range of travel from one extreme to another passing many values, while a momentary pedal is a simple two-position switch set to either Open or Closed.

Can the expression pedal be assigned to different parameters per preset?

Yes, the expression pedal values are set per preset, meaning it can be assigned for different functions like Wah or Delay Volume on different presets.

What functions can be assigned to the P1 and P2 momentary pedals?

The P1 and P2 pedals can be assigned to functions such as Preset Up/Down, Drum Beat Start/Stop, Amp On/Off, Delay On/Off, and Tuner On/Off.
