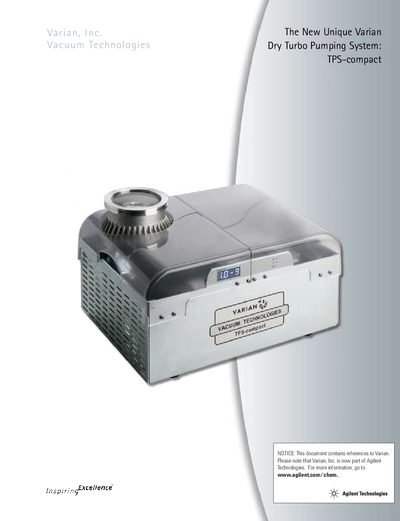

The New Unique Varian Dry Turbo Pumping System: TPS-compact from Varian, Inc. Vacuum Technologies achieves high foreline pressure tolerance, pumping speed, and throughput, as well as excellent compression ratio.
The Agilent TPS-compact is a portable, fully integrated turbo pumping system powered by the Turbo-V 81 MacroTorr or Turbo-V 301 Navigator pumps, backed by the Varian 60 I/min IDP-3 Dry Scroll new generation primary pump. It is designed to be the most innovative product in the TPS Turbo Pumping Systems family, offering a compact, light, dry, clean, and robust solution.
| Pumping Speed | 60 I/min |
|---|---|
| Operating Position | Any |
| Input Voltage and Frequency | 110 or 220 V, 50/60 Hz |
| Communication | RS232 - Analogical I/O |
| Base Pressure (TV81M) | 1x10^-8 mbar [CFF Flanges] |
The system is powered by the Turbo-V 81 MacroTorr or Turbo-V 301 Navigator pumps.
No maintenance is required as they do not need oil refills.
Yes, the pressure gauge can be connected or disconnected from the TPS-compact during normal operation.
