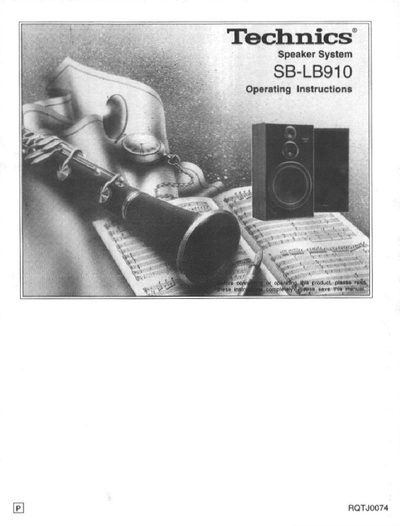

This document provides operating instructions for the Technics SB-LB910 speaker system. It details the installation process, including considerations for room acoustics and placement to optimize bass response and prevent acoustic feedback. The guide also explains how to connect the speakers to an amplifier, emphasizing the importance of correct polarity and impedance matching.
| Configuration | Bass-reflex |
|---|---|
| Impedance | 8 ohms |
| Frequency range (-10dB) | 39Hz ~ 20kHz |
| Crossover frequencies | 3kHz, 6kHz |
| Dimensions | 18-1/2" X 9-2-9/32" X 12-27/32" (470 X 820 X 326 mm) |
| Weight | 35.7 Ib. (16.2kg) |
The crossover frequencies are 3kHz and 6kHz.
Ensure the amplifier is switched OFF, use terminals with 8 ohms or below impedance, and connect positive wires to positive terminals and negative wires to negative terminals.
