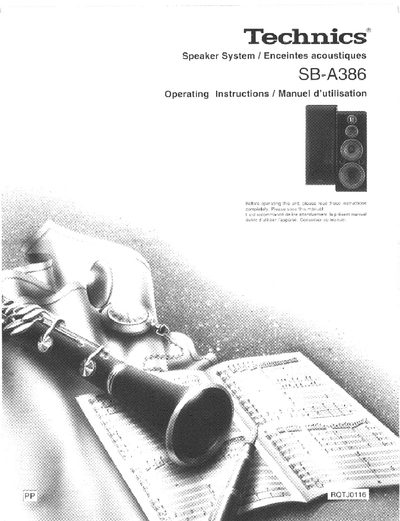

This document provides operating instructions for the Technics SB-A386 speaker system. It details how to connect the supplied cables to an amplifier, ensuring correct polarity and impedance matching to prevent damage. The manual includes specific warnings regarding excessive input power and acoustic feedback from turntables.
The guide also covers proper placement of the speakers to optimize sound quality, advising against wall mounting or placing them near heat sources. It outlines cleaning procedures and provides technical specifications including driver sizes, frequency response, and dimensions.
| System Type | 3 way, 4 speaker system, bass reflex |
|---|---|
| Impedance | 8 ohms |
| Allowed Input Power (DIN) | 130 W |
| Input Power (Music) | 260 W |
| Frequency Range (-16 dB) | 35 Hz ~ 35 kHz |
| Weight | 13.5 kg (29.7 lbs) |
No. You should not attach these speakers to walls or ceilings.
The allowed input is rated at 130 W (DIN).
You risk blowing either the amplifier or your speakers, which may result in fire.
Wipe them with a soft, dry cloth or use a weak soap and water solution.
