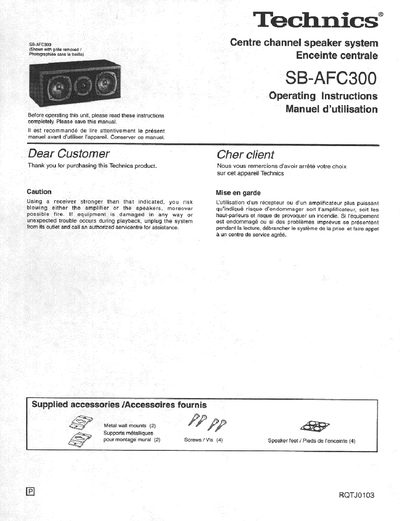

This manual provides operating instructions for the Technics SB-AFC300 centre channel speaker system. It details how to install the unit on a wall or stand, connect it to a receiver, and positions it correctly relative to other speakers and a television. The document includes specific warnings regarding power handling and installation safety.
| Type | 2 way, 3 speaker system bass reflex |
|---|---|
| Speakers (Woofer) | 12 cm cone type X2 |
| Speakers (Tweeter) | 2.5 cm dome type X1 |
| Impedance | 8Q |
| Input power | 200 W Music, 100 W (DIN) |
| Sound pressure level | 85 dB/W (1.0 m) |
| Crossover frequency | 3.5 KHz |
| Frequency response (-16 dB) | 52 Hz ~ 50 KHz |
| Dimensions (W x H x D) | 460 X 175 X 235 mm |
| Weight | 6 kg (13.2 Ibs) |
Yes, the speaker can be mounted on the wall with the metal wall mounts that are included.
Reduce the volume setting of the receiver and check connections; the circuit will reset in a few minutes.
The speaker has an impedance of 8Q.
